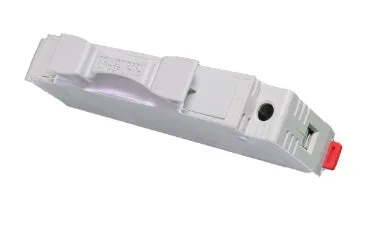

VCB10-30X15, DIN Rail Mount Fuse Holder Single Pole for 1500VDC Solar gPV Fuse
Features
- Mountable on 35mm DIN Rail
- Easy installation and replacement of fuses
- Fuses up to 100 kA breaking capacity
Applications
- Combiner Boxes in Photovoltaic Systems
- For PV10 series 1500VDC gPV Fuses
Specification
| Schurter Part Number | VCB10-30X15 |
| Nominal Voltage | 1500VDC |
| Tested Breaking Capacity | 100kA @1000VDC |
| Fuse Dimensions | |
| Fuse Holder Dimensions | 127mm x 65.8mm x 22.3mm |
| Suitable Fuses | PV 10 1500V Series |
| Operating Temperature Range | -40°C / 130°C |
| Unit Weight | 100g |
| Factory Pack Qty | 10 |
